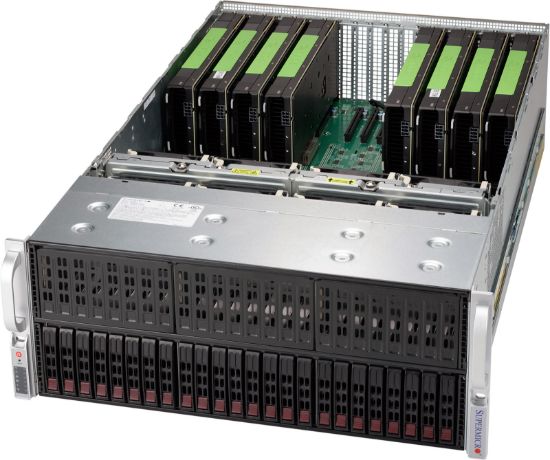

SuperServer 4028GR-TR Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s2. Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24 DIMM slots3. Expansion slots: 8 PCI-E 3.0 x16 (double-width) slots 2 PCI-E 3.0 x8 (in x16) slots 1 PCI-E 2.0 x4 (in x16) slot4. Dual GbE LAN with Intel® i3505. 24 Hot-swap 2.5" drive bays6. 8 Hot-Swap 92mm cooling fans7. 1600W Redundant (2+2) Power Supplies; Platinum Level (94%+) Manufacturer: Supermicro $4,104.17 Qty: Add to cart Custom wishlist OK Add to wishlist Add to compare list Email a friend Parts List Product SKUs SYS-4028GR-TR SuperServer 4028GR-TR (Black) Motherboard Super X10DRG-O+-CPU Processor/Cache CPU Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) * Dual Socket R3 (LGA 2011) Cores / Cache Up to 22 Cores† / Up to 55MB† Cache System Bus QPI up to 9.6 GT/s Note † BIOS version 2.0 or above is required Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. GPU/Xeon Phi Support NVIDIA® Tesla® K10/K40/K80/M40/M60/Xeon Phi System Memory Memory Capacity 24x 288-pin DDR4 DIMM slots Up to 3TB† ECC 3DS LRDIMM, 1.5TB ECC RDIMM Memory Type 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit DIMM Sizes RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C612 chipset SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC Network Controllers Dual Gigabit Ethernet Ports with Intel® i350 Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Graphics ASPEED AST2400 BMC Input / Output SATA 10 SATA3 (6Gbps) ports LAN 2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port USB 4 USB 3.0 ports Video 1 VGA Connector Serial Port 1 Serial header System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI® BIOS BIOS Features Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 USB Keyboard support SMBIOS 2.7.1 UEFI Chassis Form Factor 4U Rackmountable Rackmount Kit (MCP-290-00057-0N) Model CSE-418GTS-R3200B Dimensions Height 7.0" (178mm) Width 17.2" (437mm) Depth 29" (737mm) Weight Net Weight: 65.5 lbs (29.7 kg) Gross Weight: 100 lbs (45.3 kg) Available Colors Black Drive Bays Hot-swap 24 Hot-swap 2.5" hard drive bays Expansion Slots PCI-Express 8 PCI-E 3.0 x16 (double-width) slots 2 PCI-E 3.0 x8 (in x16) slots 1 PCI-E 2.0 x4 (in x16) slot Backplane SAS/SATA HDD Backplane System Cooling Fans 8 Hot-swap 92mm cooling fans Shrouds 1 Air Shroud (MCP-310-41808-0B) Power Supply 1600W 1U Redundant Power Supplies with PMBus Total Output Power 1000W: 100 – 127Vac 1600W: 200 – 240Vac Dimension(W x H x L) 73.5 x 40 x 265 mm Input 100-127Vac / 12.9A Max / 50-60Hz 200-240Vac / 9.5A Max / 50-60Hz +12V Max: 82A / Min: 0.1A (100-127Vac) Max: 132A / Min: 0.1A (200-240Vac) 12V SB Max: 2A / Min: 0.2A Output Type 25 Pairs Gold Finger Connector Certification Platinum Level [ Test Report ] PC Health Monitoring CPU Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages. 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V FAN 4-pin fan headers with tachometer status monitoring Low noise fan speed control mode Temperature Monitoring for CPU and system environment Thermal Control for 8 fan connectors Other Features Chassis intrusion detection Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) Parts List Parts List - (Items Included) Part Number Qty Description Motherboard / Chassis MBD-X10DRG-O+-CPU MBD-X9DRG-O-PCIE CSE-418GTS-R3200B 1 1 1 Super X10DRG-O+-CPU Motherboard Super X9DRG-O-PCIE Motherboard CSE-418GTS-R3200B Chassis Air Shroud MCP-310-41808-0B 1 Mylar PCIe air shroud for SC418G Backplane BPN-SAS3-216A 1 24-port 2U SAS3 12Gbps direct-attached backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD Cable 1 CBL-SAST-0591 2 MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,75CM,75CM SB,30AWG Cable 2 CBL-0449L 2 HDD power extension for X8OBN, special 8 pin to 4 HDD. 45cm. 18AWG Cable 3 CBL-PWEX-0582 8 8 pin to two 6+2 pin 12V GPU power cable, 30 cm 16/20 AWG, 10A/pin(16AWG), 6A/pin(20AWG), -25~85C, RoHS/REACH Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS Manual MNL-1800-QRG 1 SYS-4028GR-TR(T) Quick Reference Guide,HF,RoHS/REACH Riser Card RSC-X9DRG-O 4 RSC-X9DRG-O Heatsink / Retention SNK-P0048PS 2 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB Power Supply PWS-1K66P-1R 4 1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF Fan FAN-0151L4 8 92x92x38 mm, 11.5K RPM, SC418G Middle Fan w/ Housing,RoHS/REACH,PBF Optional Parts List Part Number Qty Description Cable CBL-PWEX-0665 - PCIe 8 pin female(black) to CPU 8 pin female(white), K80/M60/M40/P100/P40 GPU power for 300W card, 30cm, 18AWG Add-on Card Dummy MCP-240-00096-0N - GPU / Add-on Card Dummy Assembly (2 Slots)-Single Pack Bracket MCP-120-00016-00 - Blank FH L-bracket (with Tesla P4) Global Services & Support OS4HR3/2/1 OSNBD3/2/1 - - 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service Software SFT-OOB-LIC • 1 OOB Management Package (per node license) Software SFT-DCMS-Single 1 DataCenter Management Package (per node license) Products specifications Attribute name Attribute value VGA Support 8 VGA Slots Socket LGA-2011-3 Services Thời gian bảo hành : 3 Year Hỗ trợ kỹ thuật 24/7
