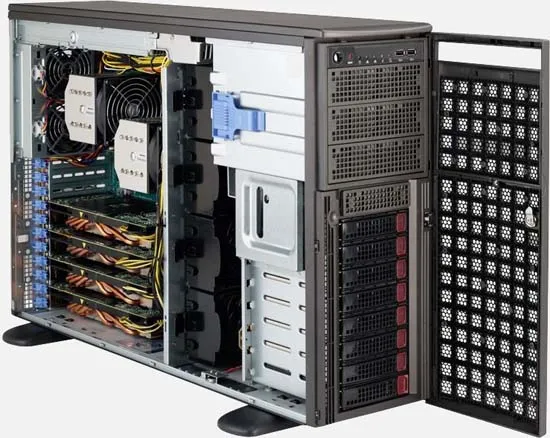

GPU SuperWorkstation 7048GR-TR

1. Dual socket R3 (LGA 2011) supports
Intel® Xeon® processor E5-2600
v4†/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB† ECC 3DS LRDIMM , up to
DDR4- 2400†MHz ; 16 DIMM slots
3. 4 PCI-E 3.0 x16 slots
2 PCI-E 3.0 x8 (1 in x16) slots
support Thunderbolt 2.0 AOC,
1 PCI-E 2.0 x4 (in x8) slot;
Up to 4 NVIDIA® GPU
4. I/O ports: 1 VGA, 2 COM, 2 GbE,
10 USB 2.0, & 1 IPMI Dedicated LAN
5. 8 Hot-swap 3.5", 3 Fixed 5.25"
and 1 Fixed 3.5" Drive Bays
6. 4 Heavy Duty Fans, 2 Exhaust
Fans, and 2 Active Heatsink with
Optimal Fan Speed Control
7. 2000W High efficiency (96%)
Redundant PSU; Titanium Level
8. Tower or Rackmount
9. GPU Kit for passive GPU/Xeon Phi
support (MCP-320-74701-0N-KIT)

Manufacturer: Supermicro

$2,258.33

Qty:

Parts List


Parts List - (Items Included)

	Part Number	Qty	Description
Motherboard / Chassis	MBD-X10DRG-Q CSE-747BTQ-R2K04B	1 1	Super X10DRG-Q Motherboard 4U Chassis
Backplane	BPN-SAS-747TQ	1	8-port Tower/4U TQ (W/ AMI 9072) backplance, support up to 8x 3.5-inch SAS/SATA HDD/SSD
Cable 1	CBL-0484L	8	SATA,INT,ROUND,ST-ST,55CM,30AWG
Cable 2	CBL-CDAT-0661	2	CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
Label	LBL-0108	1	CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual	MNL-1709-QRG	1	SYS-7048GR-TR Quick Reference Guide,HF,RoHS/REACH
Parts	MCP-260-00042-0N	1	STD I/O shield for X9 socket R server MB with Gasket.
Heatsink / Retention	SNK-P0050AP4	2	4U Active CPU Heat Sink for X9, X10 Workstations
Power Supply	PWS-2K04A-1R	2	AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH
Power Distributor	PDB-PT747-4648	1	Power Distributor for SC747 with graphic output feature


Optional Parts List

	Part Number	Qty	Description
Mounting Rails	MCP-290-00059-0B	1	Rail set+handles, quick/quick, optional for 4U 17.2"W tower
GPU Kit	MCP-320-74701-0N-KIT	1	GPU Kit for passive GPU/Xeon Phi support, 1 kit supports up to 4 GPU
Cable	CBL-PWEX-0663	1	PCIe 8 pin male (black) to CPU 8 pin female (white) power adapter, 5cm, 18AWG, 1 cable per passive GPU
Front Bezel	MCP-210-74703-0B	1	Front bezel cover (for 5.25" bay) for rackmount
Add-on Card Dummy	MCP-240-00096-0N	1	GPU / Add-on Card Dummy Assembly (2 Slots)-Single Pack
AOC Dummy Assembly	MCP-240-00096-0N	-	SC747B GPU / Add-on Card Dummy Assembly (2 Slots)-Single Pack
HDD Converter	MCP-220-93801-0B	-	Black Hotswap Gen 6 3.5 to 2.5 HDD Tray (SC747, 936, 938 and Blade)
Global Services & Support	OS4HR3/2/1 OSNBD3/2/1	- -	3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service
Software	SFT-OOB-LIC •	1	OOB Management Package (per node license)
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)
Add-on Card	AOC-TBT-DSL5320	1	Thunderbolt 2,W/Display and GPIO cable,HF,RoHS/REACH

DVD Kit

DVD-RW with Cable	DVM-LITE-DVDRW24-HBT1 CBL-0082L CBL-0044L	- - -	BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG SATA CABLE 57.5CM FLAT S-S PBF.26AWG flat

Products specifications

Attribute name	Attribute value
VGA Support	4 VGA Slots
Socket	LGA-2011-3
Services
Thời gian bảo hành	: 3 Year
Hỗ trợ kỹ thuật 24/7
