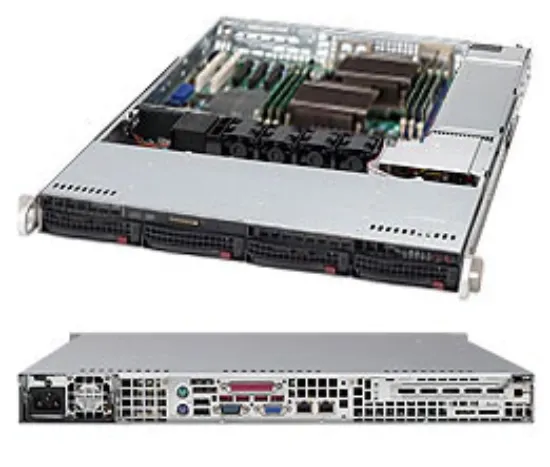

SuperChassis 815TQ-563CB

1U chassis support for motherboard size 13.68" x 13" and ATX 12" x 10", E-ATX 12" x 13"
4 x 3.5" hot-swap SAS/SATA drive bay with SES2
SAS or enterprise SATA HDD only recommended
4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD
1U 560W/600W Multi-output power supply Gold level, 24Pin output
1 full-height & full-length expansion slot(s) (Riser Card Required)
4 x 4cm heavy duty counter-rotating with optimal fan(s) speed control
Optional 2 x fan for PCI card cooling

Manufacturer: Supermicro

$345.83


Form Factor

1U chassis support for motherboard size 13.68" x 13" and ATX 12" x 10", E-ATX 12" x 13"


Processor Support

Dual and Single Intel® and AMD processors


Expansion Slots

1 full-height & full-length expansion slot(s) (Riser Card Required)


Drive Bays

4 x 3.5" hot-swap SAS/SATA drive bay with SES2 SAS or enterprise SATA HDD only recommended


Backplane

4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD


Front Panel

Buttons	Power On/Off button System Reset Button
LEDs	2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED
Ports	2x USB & DB9 COM port tray

Systems Cooling

Fans	4 x 4cm heavy duty counter-rotating with optimal fan(s) speed control Optional 2 x fan for PCI card cooling


Operating Environment (System)

Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply
1U 560W/600W Multi-output power supply Gold level, 24Pin output
Power Efficiency	92%
Total Output Power and Input	560W with Input 100 - 180Vac 600W with Input 180 - 240Vac
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	279.4 x 76 x 40.4 mm
Output Type	24pin ATX
-12V	Max: 0.5A / Min: 0A
+12V	Max: 46A / Min: 1A (100Vac - 180Vac) Max: 49A / Min: 1A (180Vac - 240Vac)
+5V	Max: 18A / Min: 0.5A
+3.3V	Max: 15A / Min: 0.5A
+5Vsb	Max: 3A / Min: 0A
+12Vsb	Max: NAA
Certification	Gold Certified


Regulatory (Power Supply)

Power Supply Safety / EMC	BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL

Components


Standard Parts List

	Part Number	Qty	Description
Air Shroud	MCP-310-19001-0N	1	SC815/113/116 Intel DP X9, X8 PC air shroud,1368x13/12x13MB
HD Backplane	BPN-SAS-815TQ	1	4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD
Cable(S)	CBL-0071L	1	ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Cable(S)	CBL-0157L	1	8PIN TO 8PIN RIBBON CABLE FOR SGPIO, PB FREE
Cable(S)	CBL-0160L	1	US POWER CORD 16AWG, PB FREE
Cable(S)	CBL-0180L-01	1	SATA SET OF 4-70/59/48/38CM ROUND S-RA, PBF
CD-ROM & Accessory	CSE-PT93L-B	1	Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
Fan(s)	FAN-0086L4	4	40x56 4Pin PWM, Primary for SC815, Secondary for SC818, 825M
Front Panel	MCP-280-81301-0N	1	Non-U front control board (FP813) for SC510,808,813,815,818
Cooling Fan & Accessory	CSE-PT0135	1	FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS
Drive Tray(s)	MCP-220-00075-0B	4	Black gen 5.5 hot-swap 3.5" HDD tray
Part(s)	MCP-420-81501-0N	1	Slim CDR Accessory(in accessory box)
Part(s)	MCP-420-81502-0N	1	Slim FDD Accessory for SC815(in accessory box)
Power Supply & Accessory	PWS-563-1H	1	1U 560W MULTI OUTPUT 80+ GOLD PWS 24PIN
Mounting Rail(s)	CSE-PT51L	1	Silver chassis rail set for SC813,814,815,816,819
Rear Window	MCP-240-00085-0N	1	STD rear window for SC113 single PWS


Optional Parts List

	Part Number	Qty	Description
Adaptor HDD carrier	MCP-220-00043-0N	-	Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray
Heatsink / Retention	N/A	-	Please refer to our Thermal Components Matrix
LCD/OLED Solutions	N/A	-	Please reference the LCD/OLED Display Solutions for details
Mounting Rail	MCP-290-00056-0N	-	Short outer rail, /quick, optional for 1U 17.2
Mounting Rail	MCP-290-00052-0N-BULK	-	Outer rail, /quick, optional for 1U 17.2
Mounting Rail	MCP-290-00054-0N	-	Rail set, quick/quick, optional for 1U 17.2
Peripheral Drive(s)	DVM-TEAC-DVD-SBT3	-	BLACK TEAC SLIM DVD ROM SATA DRIVE ROHS,HF,RoHS/REACH,PBF
Peripheral Drive(s)	DVM-PNSC-DVD-SBT3	-	BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH
Peripheral Drive(s)	MCP-220-81502-0N	-	Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842
Tray(s)	MCP-220-83601-0B	-	Black FDD dummy tray support 1x 2.5
Tray(s)	MCP-290-00036-0B	-	Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836
Front Bezel	CSE-PTFB-813LB	-	BLACK SC813 FRONT BEZEL, PB FREE
Front Bezel	MCP-210-00007-01	-	COMPLETE BLACK 1U LCD BEZEL FOR SC813, SC815
