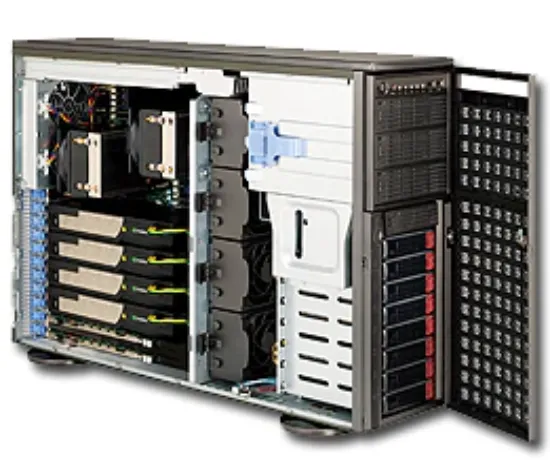

SuperChassis 747TQ-R1620B

8x 3.5" SAS/SATA Backplane for Hot-Swappable Drives
11x Full-Height, Full-Length Expansion Slots Optimized for 4x Double Width GPU Solution
Front HDD Door Lock & Side Panel Intrusion Switch
Front I/O Ports: 2x USB 2.0
4x 9cm PWM Cooling Fans & 2x 8cm Rear PWM Fans
4U / Full Tower Chassis Supports max. Motherboard, Sizes E-ATX 15.2" x 13.2"/ ATX/Micro ATX
1620W Redundant Platinum Level Certified High-Efficiency Power Supply
3x 5.25" External HDD Drive Bays & 8x 3.5" Hot-Swappable HDD Drives

Manufacturer: Supermicro

$1,137.50

Product SKUs - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply

CSE-747TQ-R1620B	SuperChassis 747TQ-R1620B


Form Factor

4U tower/rachmount chassis - supports for maximum motherboard sizes: 15.2" x 13.2"


Processor Support

Single and Dual Intel® and AMD processors


Expansion Slots

11 full-height & full-length expansion slot(s)


Drive Bays

8 x 3.5" hot-swap SAS/SATA drive bay with SGPIO


Backplane

8-port Tower/4U TQ (W/ AMI 9072) backplance, support up to 8x 3.5-inch SAS/SATA HDD/SSD


Peripheral Drives

90 degree rotatable drive cage 3 x standard 5.25" drive bay 1 x 3.5" internal fixed drive bay


Front Panel

Buttons	Power On/Off button System Reset Button
LEDs	2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED
Ports	2x USB 2.0 Port(s)

Systems Cooling

Fans	4 x 92mm hot-swap fan(s) 2 x 80mm rear hot-swap exhaust PWM fan(s)


Operating Environment (System)

Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply
1U 1000/1200/1620W Redundant Single Output Power Supply W/PMbus, Platinum
Power Efficiency	94%
Total Output Power and Input	1000W with Input 100 - 120Vac 1200W with Input 120 - 140Vac 1620W with Input 180 - 240Vac
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	336 x 76 x 40 mm
Output Type	Backplanes (gold finger)
-12V	Max: NAA
+12V	Max: 84A / Min: 0.5A (100Vac - 120Vac) Max: 100A / Min: 0.5A (120Vac - 140Vac) Max: 135A / Min: 0.5A (180Vac - 240Vac)
+5Vsb	Max: 4AA / Min: 0A
+12Vsb	Max: NAA
Power Distributor	PDB-PT747-4648 O/P: 12/212 +5V Max: 30 +3.3V Max: 24 -12V Max: 0.6
Certification	Platinum Certified


Regulatory (Power Supply)

Power Supply Safety / EMC	BSMI CCC CE/EMC FCC class A TUV/CB UL/CUL
