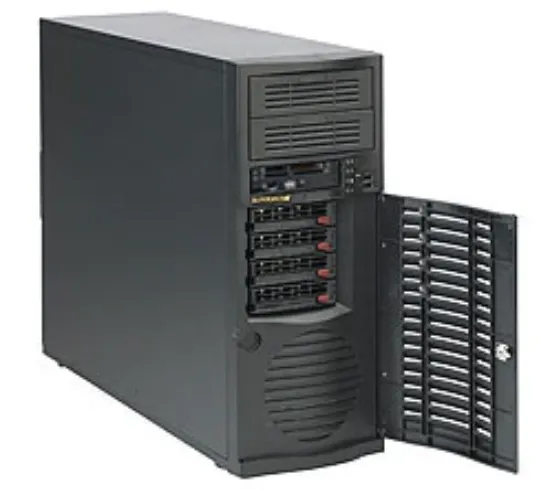

SuperChassis 733T-500B

4x 3.5" SAS/SATA Backplane for Hot-Swappable Drives
Front HDD Door Lock
Front I/O Ports: 2x USB 2.0
1x 9cm Front (4200 rpm) PWM Fan
Mid-Tower Chassis Supports max. Motherboard, Sizes: E-ATX 12” x 13”/ATX/Micro ATX
500W Bronze Level Certified High-Efficiency Power Supply
2x 5.25" External HDD Drive Bays & 4x 3.5" HDD Drive Bays

Manufacturer: Supermicro

$220.83

Specifications


Form Factor

Mid-tower chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX and ATX


Processor Support

Dual and Single Intel® and AMD processors


Expansion Slots

7 full-height & full-length expansion slot(s)


Peripheral Drives

2 x standard 5.25" drive bay 1 x 3.5" internal fixed drive bay


Front Panel

Buttons	Power On/Off button System Reset Button
LEDs	1 Network Activity LEDs HDD activity LED Power LED System Overheat LED
Ports	2x USB 2.0 Port(s)


Operating Environment (System)

Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply
PS2/ATX 500W Multi-output power supply with 12CM fan, Bronze level
Power Efficiency	88%
Total Output Power and Input	500W with Input 100 - 240Vac
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	140 x 150 x 86 mm
Output Type	24pin ATX
-12V	Max: 0.5A / Min: 0A
+12V	Max: 17A / Min: 1A (100Vac - 240Vac) Max: 17A (100Vac - 240Vac) Max: 17A (100Vac - 240Vac) Max: 18A (100Vac - 240Vac)
+5V	Max: 20A / Min: 0.5A
+3.3V	Max: 15A / Min: 0.5A
+5Vsb	Max: 3A / Min: 0A
+12Vsb	Max: NAA
Certification	Bronze Certified
