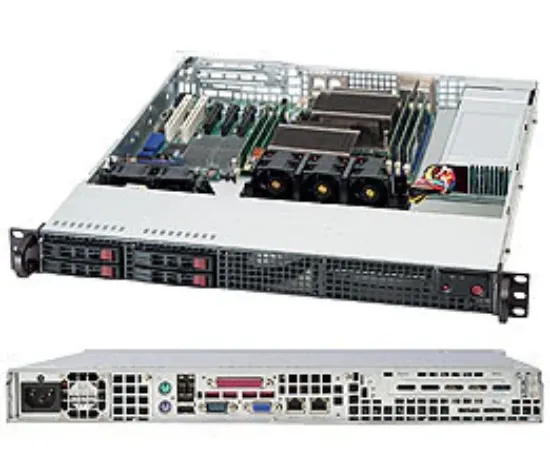

SuperChassis 111TQ-563CB

1U Rackmount Chassis - supports for motherboard sizes of 12" x 13" E-ATX, 12" x 10" ATX, and 9.6" x 9.6" Micro-ATX
4 x 2.5" hot-swap SAS/SATA drive bay
SAS or enterprise SATA HDD only recommended
4-port 1U SC809/SC111 TQ backplane (with enclosure management), support up to 4x 2.5-inch SAS/SATA HDD
1U 560W/600W Multi-output power supply Gold level, 24Pin output
1 full-height & full-length expansion slot(s)
3 x 40x56mm counter-rotation PWM fan(s)
Optional 2 x fan for PCI card cooling

Manufacturer: Supermicro

$316.67


Form Factor

1U Rackmount Chassis - supports for motherboard sizes of 12" x 13" E-ATX, 12" x 10" ATX, and 9.6" x 9.6" Micro-ATX


Processor Support

Dual, single Intel® / AMD processors


Expansion Slots

1 full-height & full-length expansion slot(s)


Drive Bays

4 x 2.5" hot-swap SAS/SATA drive bay SAS or enterprise SATA HDD only recommended


Backplane

4-port 1U SC809/SC111 TQ backplane (with enclosure management), support up to 4x 2.5-inch SAS/SATA HDD


Front Panel

Buttons	Power On/Off button System Reset Button
LEDs	2 Network Activity LEDs HDD activity LED Power Status LED

Systems Cooling

Fans	3 x 40x56mm counter-rotation PWM fan(s) Optional 2 x fan for PCI card cooling


Operating Environment (System)

Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply
1U 560W/600W Multi-output power supply Gold level, 24Pin output
Power Efficiency	92%
Total Output Power and Input	560W with Input 100 - 180Vac 600W with Input 180 - 240Vac
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	279.4 x 76 x 40.4 mm
Output Type	24pin ATX
-12V	Max: 0.5A / Min: 0A
+12V	Max: 46A / Min: 1A (100Vac - 180Vac) Max: 49A / Min: 1A (180Vac - 240Vac)
+5V	Max: 18A / Min: 0.5A
+3.3V	Max: 15A / Min: 0.5A
+5Vsb	Max: 3A / Min: 0A
+12Vsb	Max: NAA
Certification	Gold Certified


Regulatory (Power Supply)

Power Supply Safety / EMC	BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL

Components


Standard Parts List

	Part Number	Qty	Description
Air Shroud	MCP-310-19006-0N	1	SC111 Intel DP X9 Universal Mylar Air Shroud, 12x13MB
HD Backplane	BPN-SAS-809TQ	1	4-port 1U SC809/SC111 TQ backplane (with enclosure management), support up to 4x 2.5-inch SAS/SATA HDD
Cable(S)	CBL-0160L	1	US POWER CORD 16AWG, PB FREE
Cable(S)	CBL-0206L	1	48CM SATA ROUND S-S PBF
Cable(S)	CBL-0226L	3	43CM SATA ROUND S-RA PBF
Cable(S)	CBL-0277L	1	HDD POWER CABLE (BIG 4 PIN; 32CM), PBF
Cable(S)	CBL-0306L	1	FRONT CTRL CABLE ROUND 16 TO 16 PIN RIBBON, 65CM
CD-ROM & Accessory	MCP-290-11101-0B	1	black DVD dummy cover for SC111
Fan(s)	MCP-340-00030-0N	1	40x56,4 Pin PWM,Primary for SC809, Sec. for SC816,819,808
Fan(s)	FAN-0101L4	3	40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
Drive Tray(s)	MCP-220-00047-0B	4	Black gen 3rd hot-swap 2.5inch HDD tray
Part(s)	MCP-260-00024-0N	1	1U I/O shield for X8 server MB (3rd LAN + 4xLAN)
Part(s)	MCP-260-00041-0N	1	1U I/O shield for X9 socket R server MB with Gasket
Part(s)	MCP-290-00033-0N	1	Fan holder (3x 40x56) for SC111,808,809,811
Power Supply & Accessory	PWS-563-1H	1	1U 560W MULTI OUTPUT 80+ GOLD PWS 24PIN
Mounting Rail(s)	MCP-290-00050-0N	1 set	Rail set, (inner rail: quick-release, outer rail: screw-type)
Rear Window	MCP-240-11102-0N	1	SC111 standard rear window


Optional Parts List

	Part Number	Qty	Description
Rail	MCP-290-00056-0N	-	Quick-release outer rail for square hole short-depth rack (19"~26.4")
Air Shroud	MCP-310-11102-0B	-	Air Shroud for SC111 (AMD DP MB)
Air Shroud	MCP-310-11105-0B	-	1 set(2pcs) air shroud for X7DCL-3/I in SC111
Peripheral Drive(s)	DVM-PNSC-DVD-SBT3	-	BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH
Peripheral Drive(s)	DVM-TEAC-DVD-SBT4	-	BLACK TEAC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH
Tray(s)	MCP-290-111103-0N	-	Dual port USB Kit (FDD Slot)
Fan Kit	FAN-0100L4	-	40X28MM 4-PIN PWM FAN
Fan Kit	FAN-0106L4	-	High current (0.14A) version of Fan-0100L4 (40x28mm PWM)
Fan Kit	MCP-320-11101-0N	-	Fan holder for 2x 4028 fans
Peripheral Drive(s)	MCP-220-11102-0N	-	Slim SATA DVD kit for SC111
Air Shroud	MCP-310-11106-0B	-	SC111 air shroud for X7SB3 and X7SBU (UP MB)
