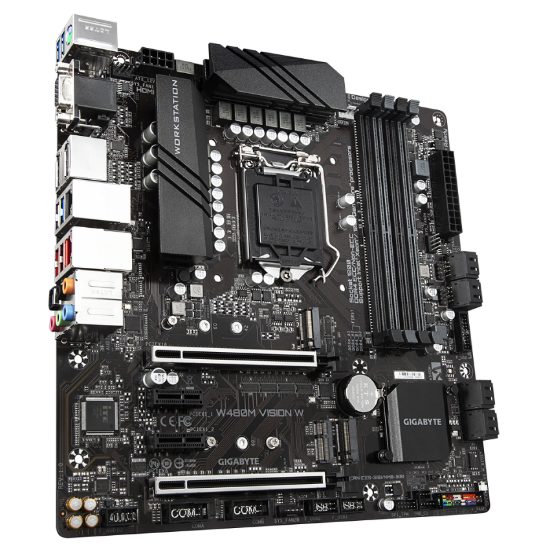

Motherboard Gigabyte W480 VISION W

Name: Motherboard Gigabyte W480 VISION W
Price: 245.83 USD
Availability: InStock

Manufacturer: Gigabyte

$245.83

Qty:

CPU
1. LGA1200 package:
  Intel^® Xeon^® W series processors
  10th Generation Intel^® Core™ processors/Intel^® Pentium^® processors/ Intel^® Celeron^® processors
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel^® W480 Express Chipset
Memory
1. Intel^® Xeon^® W-1290/W-1270 series processors/Intel^® Core™ i9/i7 processors:
  Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
2. Intel^® Xeon^® W-1250 series processors/Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
  Support for DDR4 2666/2400/2133 MHz
3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  * To support ECC, you must install an Intel^® Xeon^® processor.
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.3.
2. 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz
  * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 512 MB
Audio
1. Realtek^® ALC1220-VB codec
  * The back panel line out jack supports DSD audio.
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
1. Intel^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)(LAN2)
2. Intel^® GbE LAN chip (1 Gbit/100 Mbit)(LAN1)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
  * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
3. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
  * The PCIEX4_2 slot shares bandwidth with the M2M_SB connector. The PCIEX4_2 slot becomes unavailable when a device is installed in the M2M_SB connector.
4. 1 x PCI Express x1 slot
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)
5. 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
Supports up to ASPM L1.2 power management protocols.
Multi-Graphics Technology
1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
1. 1 x M.2 connector (Socket 3, M key, type 2280/22110 PCIe x4/x2 SSD support) (M2A_CPU)
2. 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
3. 8 x SATA 6Gb/s connectors (SATA3 0~7)
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
5. Intel^® Optane™ Memory Ready
6. ASMedia^® ASM1061 chip:
  2 x SATA 6Gb/s connectors (GSATA3 0~1), supporting AHCI mode only
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
USB
Chipset:
1. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
3. 3 x USB 3.2 Gen 1 ports on the back panel
4. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+1 USB 3.2 Hub:
1. 3 x USB 3.2 Gen 1 ports (1 port onboard, 2 ports available through the internal USB header)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x PMBUS (Power Information Detection) header
5. 2 x M.2 Socket 3 connectors
6. 10 x SATA 6Gb/s connectors
7. 2 x SATA DOM power connectors
8. 2 x SATA detection headers
9. 1 x CPU fan header
10. 1 x water cooling CPU fan header
11. 2 x system fan headers
12. 2 x system fan/water cooling pump headers
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x USB 3.2 Gen 1 port (USB30_OB)
16. 1 x USB Type-C™ header, with USB 3.2 Gen 2 support
17. 1 x USB 3.2 Gen 1 header
18. 1 x USB 2.0/1.1 header
19. 2 x Thunderbolt™ add-in card connectors
20. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
21. 2 x serial port headers
22. 2 x temperature sensor headers
23. 1 x power button
24. 1 x reset button
25. 1 x Clear CMOS button
26. 1 x Clear CMOS jumper
27. 1 x Q-Flash Plus button
Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x HDMI port
3. 2 x DisplayPorts
4. 1 x USB 3.2 Gen 2 Type-A port (red)
5. 3 x USB 3.2 Gen 1 ports
6. 4 x USB 2.0/1.1 ports
7. 2 x RJ-45 ports
8. 1 x optical S/PDIF Out connector
9. 5 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. cFosSpeed
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm
Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
