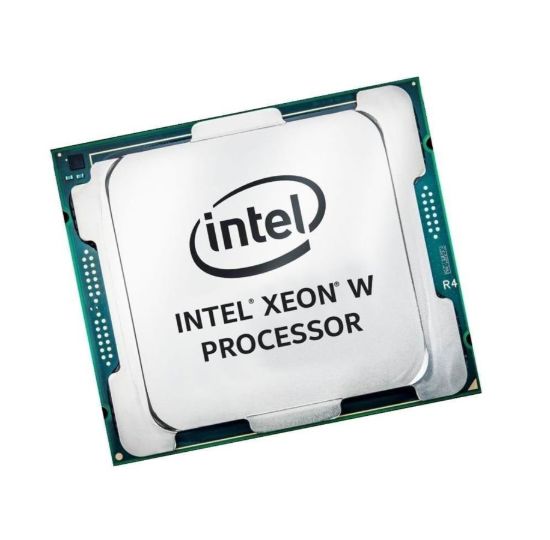

Intel Xeon W-1290 Processor 20M Cache, 3.20 GHz Intel Xeon W-1290 (10 Core, 20M cache, base 3.2GHz, up to 5.2GHz) DDR4 2933 Manufacturer: Intel $539.58 Qty: Add to cart Custom wishlist OK Add to wishlist Add to compare list Email a friend Essentials Product CollectionIntel® Xeon® W Processor Code NameProducts formerly Comet Lake Vertical SegmentWorkstation Processor NumberW-1290 StatusLaunched Launch DateQ2'20 Lithography14 nm Included ItemsThis product is available in tray and box. For boxed product, a thermal solution is included Use ConditionsWorkstation CPU Specifications # of Cores10 # of Threads20 Processor Base Frequency3.20 GHz Max Turbo Frequency5.20 GHz Intel® Thermal Velocity Boost Frequency5.20 GHz Cache20 MB Intel® Smart Cache Bus Speed8 GT/s Intel® Turbo Boost Max Technology 3.0 Frequency ‡5.10 GHz Intel® Turbo Boost Technology 2.0 Frequency‡5.00 GHz TDP80 W Supplemental Information Embedded Options AvailableNo Memory Specifications Max Memory Size (dependent on memory type)128 GB Memory TypesDDR4-2933 Max # of Memory Channels2 Max Memory Bandwidth45.8 GB/s ECC Memory Supported ‡Yes Processor Graphics Processor Graphics ‡Intel® UHD Graphics P630 Graphics Base Frequency350 MHz Graphics Max Dynamic Frequency1.20 GHz Graphics Video Max Memory64 GB 4K SupportYes, at 60Hz Max Resolution (HDMI)‡4096x2160@30Hz Max Resolution (DP)‡4096x2304@60Hz Max Resolution (eDP - Integrated Flat Panel)‡4096x2304@60Hz DirectX* Support12 OpenGL* Support4.5 Intel® Quick Sync VideoYes Intel® InTru™ 3D TechnologyYes Intel® Clear Video HD TechnologyYes Intel® Clear Video TechnologyYes # of Displays Supported ‡3 Device ID0x9BC6 Expansion Options Scalability1S Only PCI Express Revision3.0 PCI Express Configurations ‡Up to 1x16, 2x8, 1x8+2x4 Max # of PCI Express Lanes16 Package Specifications Sockets SupportedFCLGA1200 Max CPU Configuration1 Thermal Solution SpecificationPCG 2015W Intel® Thermal Velocity Boost Temperature70 °C TJUNCTION100°C Package Size37.5mm x 37.5mm Advanced Technologies Intel® Optane™ Memory Supported ‡Yes Intel® Thermal Velocity BoostYes Intel® Turbo Boost Max Technology 3.0 ‡Yes Intel® Turbo Boost Technology ‡2.0 Intel vPro® Platform Eligibility ‡Yes Intel® Hyper-Threading Technology ‡Yes Intel® Virtualization Technology (VT-x) ‡Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes Intel® VT-x with Extended Page Tables (EPT) ‡Yes Intel® Transactional Synchronization ExtensionsNo Intel® 64 ‡Yes Instruction Set64-bit Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2 Idle StatesYes Enhanced Intel SpeedStep® TechnologyYes Thermal Monitoring TechnologiesYes Intel® Identity Protection Technology ‡Yes Security & Reliability Intel® AES New InstructionsYes Secure KeyYes Intel® Software Guard Extensions (Intel® SGX)Yes with Intel® ME Intel® OS GuardYes Intel® Trusted Execution Technology ‡Yes Execute Disable Bit ‡Yes Intel® Boot GuardYes
